Free Shipping KF Flange In-line Type Pneumatic Bellows Valve Stainless Steel 304

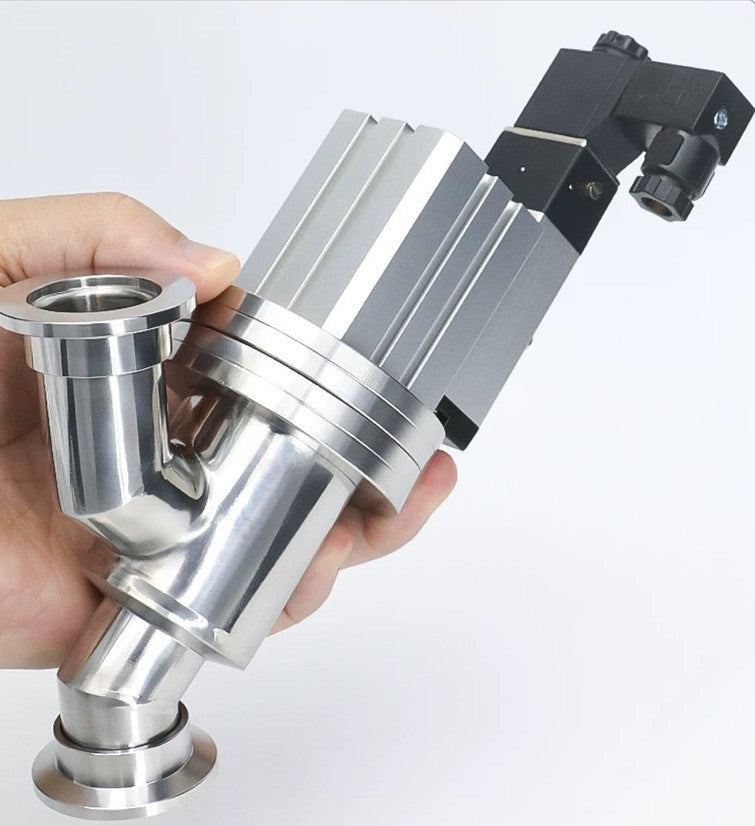

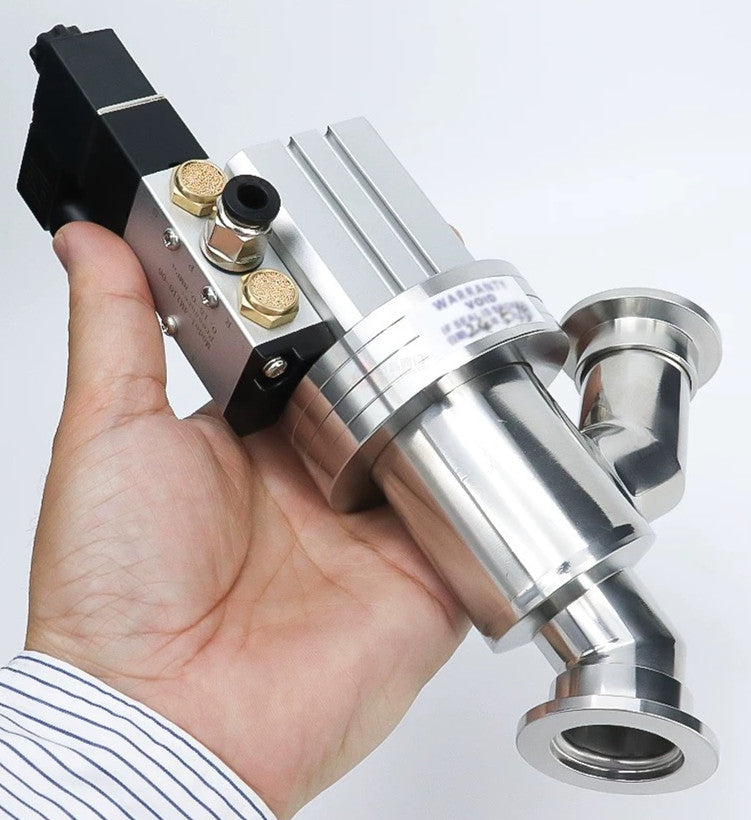

These JOWIN pneumatic bellows 90 degree angle valves have standard NW-KF inlet and outlet ports. They are designed primarily for use in the high-vacuum range (10^-8 Torr), with leak rates of 10^-9 Torr l/s (He) but can be used up to positive pressures of 60-80 psi. These valves are constructed of a 304 stainless steel valve body and mechanism, an aluminum actuator, and FKM bellows seat O-ring seals.

Features

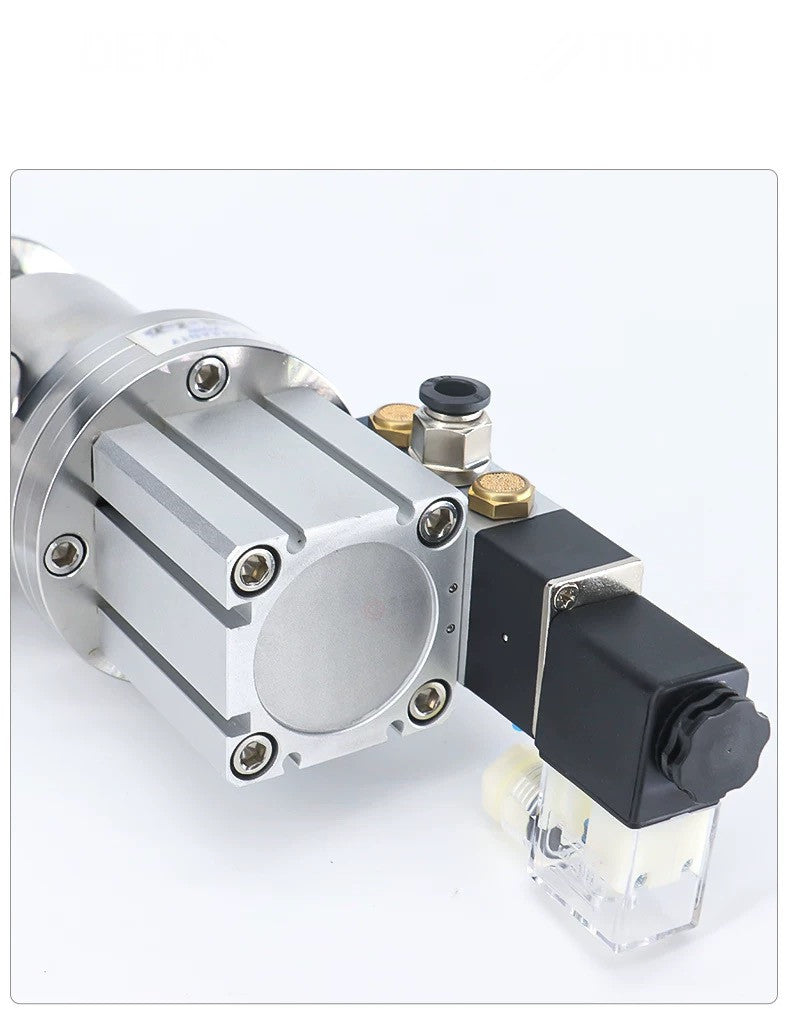

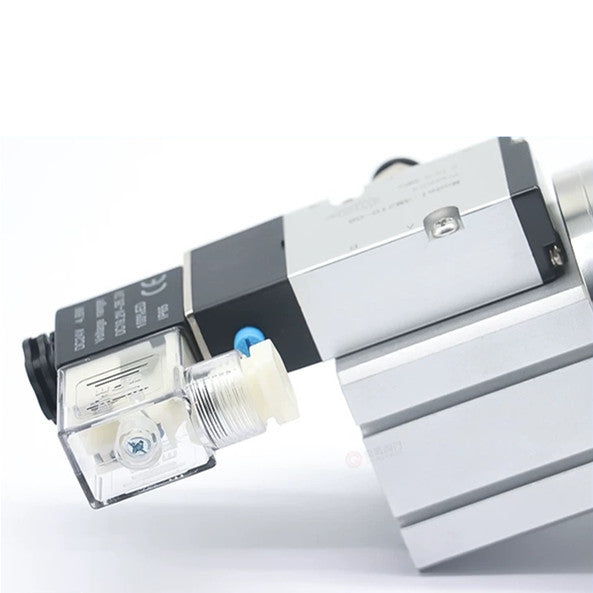

• Pneumatic actuation including a 24V DC solenoid valve.
• Normal repairs no need removing the valve body from pipe system.
• Stainless steel 304 valve body and aluminum alloy actuator.
