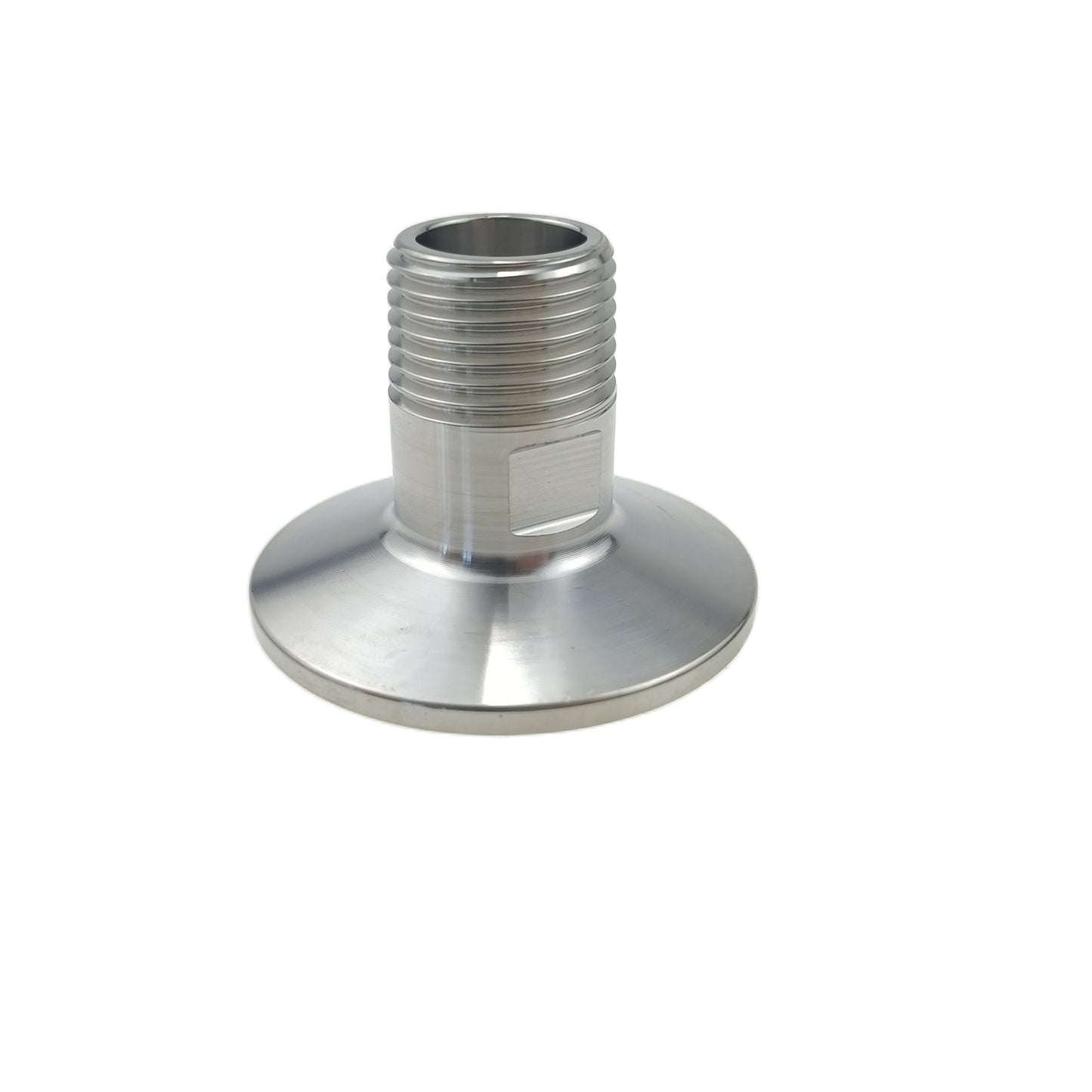

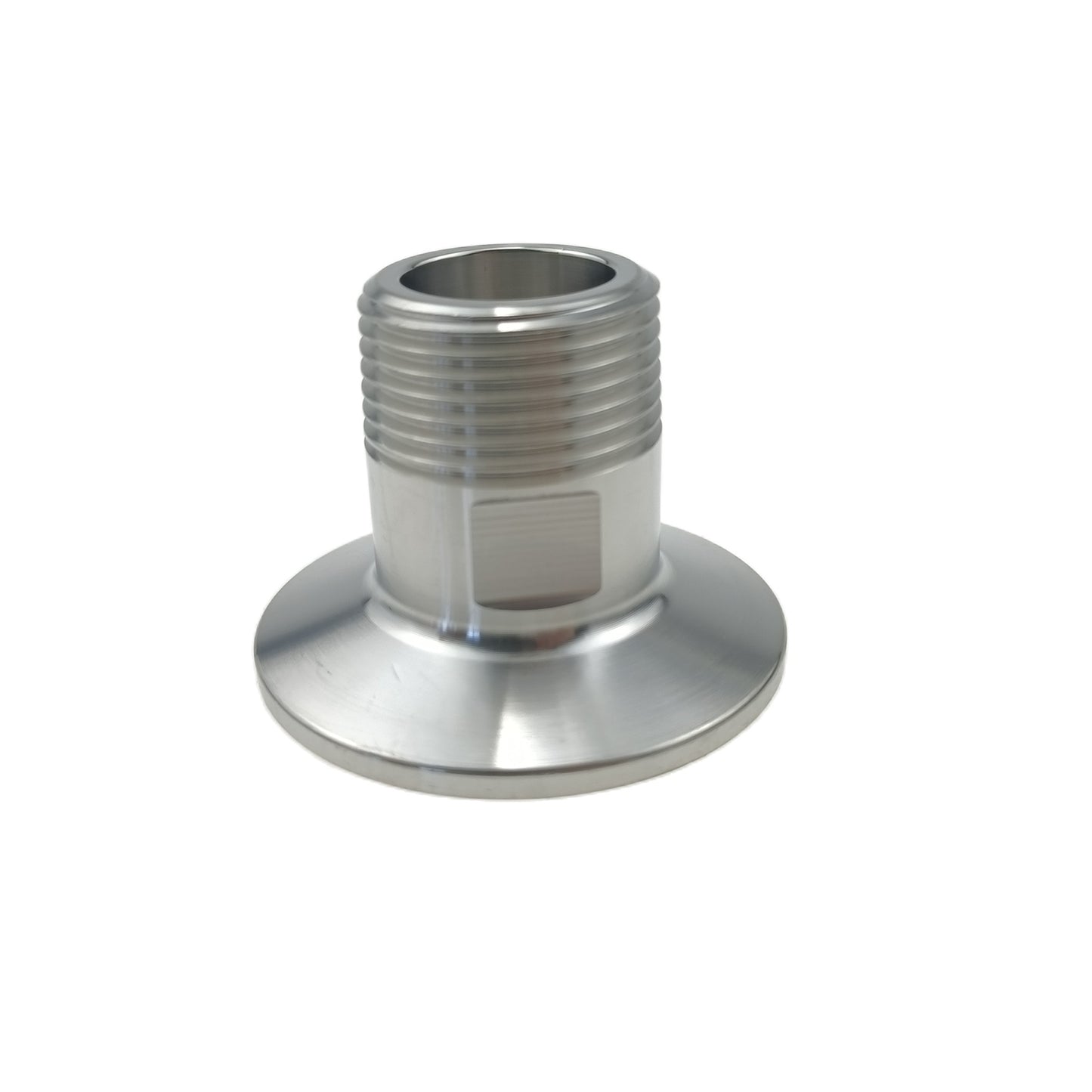

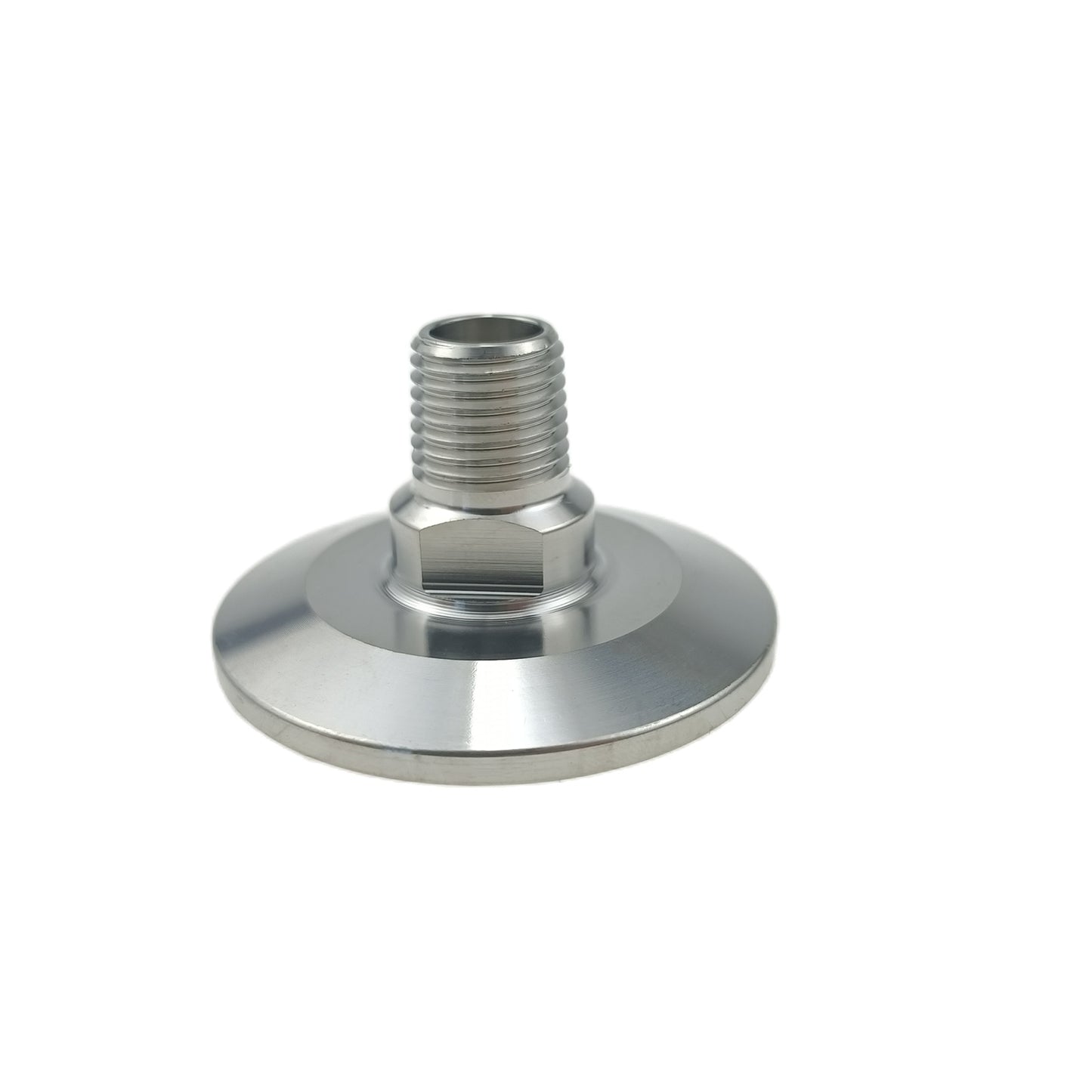

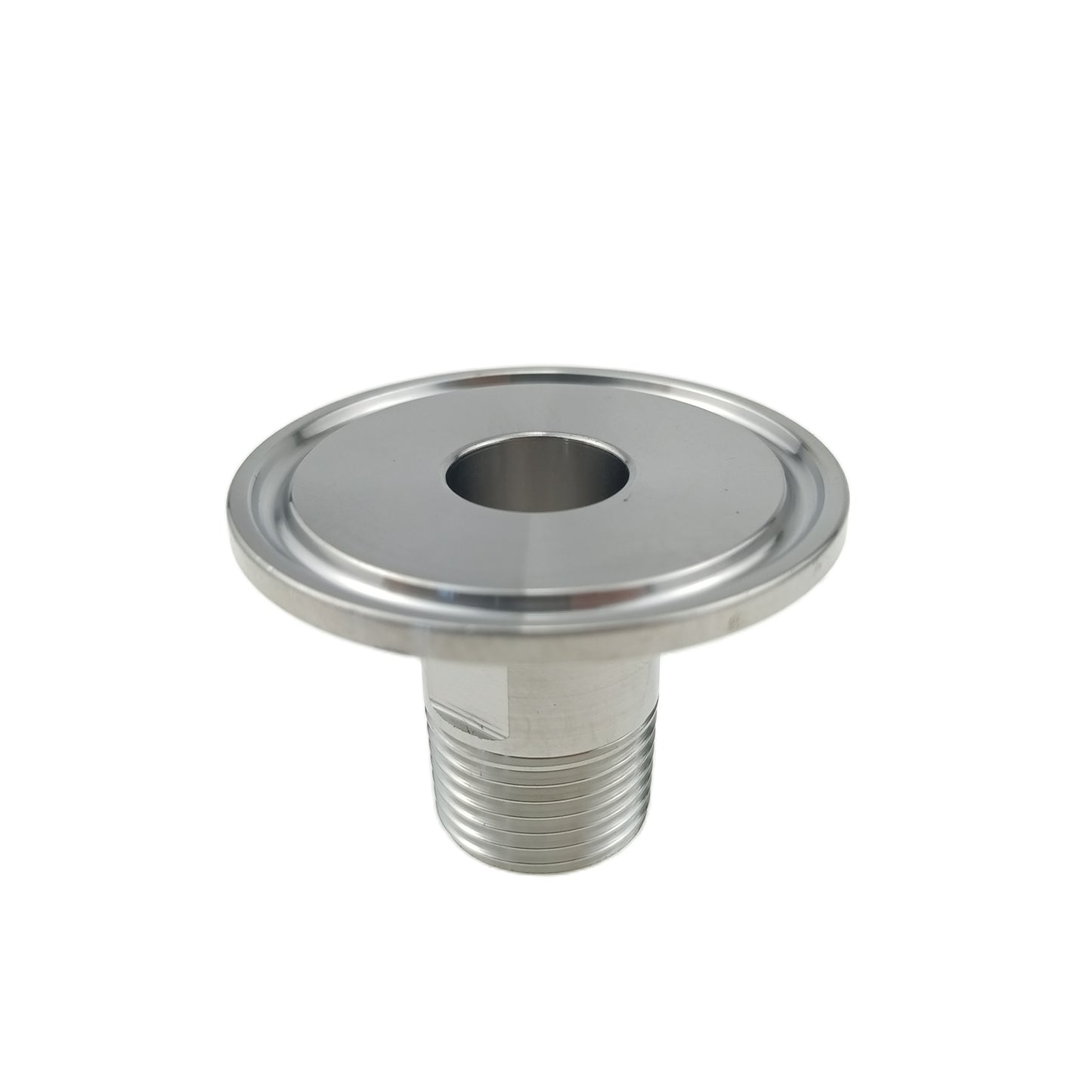

Free Shipping JOWIN 1.5" Tri Clamp Ferrule Adapter to 1/4",1/2", 3/4" Male NPT Thread Sanitary Pipe Fitting

• 304 stainless steel constructed .
• 1/4", 1/2" and 3/4" MNPT male npt threaded .
• All adapters share the same 1.5" tri clamp fitting (1.984" ferrule O.D).
• CNC machined.

NPT means National Pipe Taper

NPT threaded are widely used for joining pipe. Since the tapered threads (wider diameter at the base of the threads, similar to a trapezoid) the male fitting will be tighten when it is  threaded into the female fittings.

How to determining NPT size:

Sizing NPT is based on the nominal pipe diameter (you can understand it is out diameter of a tube/pipe), and not the outside diameter (O.D) of the threads . For example: A 1/2" NPT male has an outside thread diameter of approx. 3/4 inch, but as stated the correct NPT size is 1/2", including the counterpart female.
